ADF_026：使用ADF Faces 之六：使用CSS为应用动态换肤

本文最后一次修改时间：2012-03-09。
开发环境：JDevloper 11.1.2.1.0+ Oracle Database 10g Express Edition 10.2.0.1。

完成《Changing an Application's Look and Feel by Using Skins》。

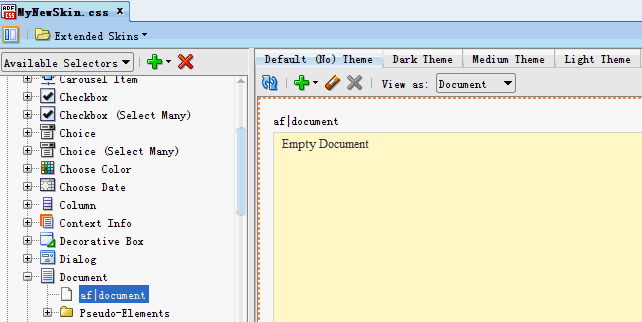

1. 创建ADF Skin：MyNewSkin.css

新建的ADF Skin继承fusion的皮肤，包括所有组件的外观定义。

可以在默认皮肤的基础上定制你的皮肤，修改后会把变化的部分保存到CSS文件中。


2. 使用Firefox Debug查看当前页面使用的是哪个CSS?


3. 定制皮肤
（1）定制af:document：Faces Component Selectors > Document > af|document

（2）定制默认字体：Global Selector Aliases | Font > .AFDefaultFontFamily

（3）定制默认别名字体：Global Selector Aliases | Font > .AFDefaultFont:alias.

（4）定制Panel Header：Faces Component Selectors，Panel Header | Pseudo-Elements

（5）定制Column Header：Faces Component Selectors，Column | Pseudo-Elements node，column-header-table

（6）定制Panel List的Link：Panel List > Pseudo-Elements，link

（7）定制Tab形状：Global Selector Aliases > node Component Group Tabs

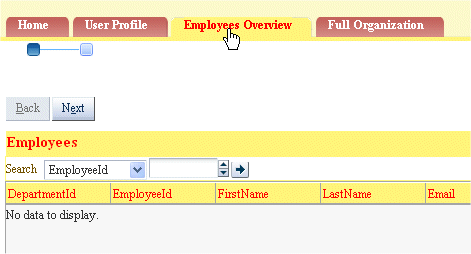

运行效果如下：使用登录用户 sking/Welcome1234


4. 运行时动态切换皮肤
（1）trinidad-config.xml
该文件决定运行时使用哪个皮肤，可以静态指定，也可以使用EL表达式实现动态选择。
你甚至可以根据用户的本地语言来决定使用哪个皮肤，比如德语皮肤或英语皮肤。

<?xml version="1.0" encoding="windows-1252"?>
<trinidad-config xmlns="http://myfaces.apache.org/trinidad/config">
  <skin-family>#{sessionScope.skinFamily!=null?sessionScope.skinFamily : 'fusion'}</skin-family>
  <!--
  <skin-family>MyNewSkin</skin-family>
  <skin-family>#{facesContext.viewRoot.locale.language=='de' ? 'german' : 'english'}</skin-family>
-->
</trinidad-config>

（2）trinidad-skins.xml
该文件注册了所有自定义皮肤，运行时可以选择这些皮肤或者系统自带的皮肤。

<?xml version="1.0" encoding="windows-1252" ?>
<skins xmlns="http://myfaces.apache.org/trinidad/skin">
  <skin>
    <id>completedSkinSample.desktop</id>
    <family>completedSkinSample</family>
    <extends>fusion.desktop</extends>
    <render-kit-id>org.apache.myfaces.trinidad.desktop</render-kit-id>
    <style-sheet-name>skins/completedSkinSample/completedSkinSample.css</style-sheet-name>
  </skin>
  <skin>
    <id>princess-skin.desktop</id>
    <family>princess-skin</family>
    <render-kit-id>org.apache.myfaces.trinidad.desktop</render-kit-id>
    <extends>simple.desktop</extends>
    <style-sheet-name>skins/princess/princess.css</style-sheet-name>
  </skin>
  <skin>
    <id>MyNewSkin.desktop</id>
    <family>MyNewSkin</family>
    <extends>fusionFx-simple-v2.desktop</extends>
    <render-kit-id>org.apache.myfaces.trinidad.desktop</render-kit-id>
    <style-sheet-name>skins/MyNewSkin/MyNewSkin.css</style-sheet-name>
    <bundle-name>adf/sample/view.skinBundle</bundle-name>
  </skin>
</skins>

（3）trinidad-skins.xml
<af:selectOneChoice label="Choose a Skin" value="#{sessionScope.skinFamily}" id="soc1" autoSubmit="true" valueChangeListener="#SkinManager.onNewSkinSelection}">
<f:selectItems value="#{SkinManager.skinChoices}" id="si1"/>
</af:selectOneChoice>

（4）SkinManager.java

package adf.sample.view.beans;

import java.io.IOException;

import java.util.ArrayList;
import java.util.Iterator;
import java.util.List;
import java.util.Map;

import javax.faces.context.ExternalContext;
import javax.faces.context.FacesContext;
import javax.faces.event.ValueChangeEvent;
import javax.faces.model.SelectItem;

import oracle.adf.controller.ControllerContext;
import oracle.adf.share.ADFContext;

import org.apache.myfaces.trinidad.skin.Skin;
import org.apache.myfaces.trinidad.skin.SkinFactory;


public class SkinManager {
    public SkinManager() {
        ADFContext adfctx = ADFContext.getCurrent();
        Map sessionScope = adfctx.getSessionScope();
        Object skinFamily = sessionScope.get("skinFamily");
        if (skinFamily == null) {
            sessionScope.put("skinFamily", "fusion");
        }
    }

    public List getSkinChoices() {
        List choices = new ArrayList();
        String skinFamily = null;
        String skinLabel = null;
        SkinFactory sf = SkinFactory.getFactory();
        FacesContext context = FacesContext.getCurrentInstance();
        for (Iterator i = sf.getSkinIds(); i.hasNext(); ) {
            String skinID = (String)i.next();
            Skin skin = sf.getSkin(context, skinID);
            skinFamily = skin.getFamily();
            skinLabel = skinFamily;
            if (skin.getRenderKitId().indexOf("desktop") > 0) {
                choices.add(new SelectItem(skinFamily, skinLabel));
            }
        }
        return choices;
    }

    public void onNewSkinSelection(ValueChangeEvent valueChangeEvent) {
        ADFContext adfctx = ADFContext.getCurrent();
        Map sessionScope = adfctx.getSessionScope();
        sessionScope.put("skinFamily", (String)valueChangeEvent.getNewValue());
        redirectToSelf();
    }

    private void redirectToSelf() {
        FacesContext fctx = FacesContext.getCurrentInstance();
        ExternalContext ectx = fctx.getExternalContext();
        String viewId = fctx.getViewRoot().getViewId();
        ControllerContext controllerCtx = null;
        controllerCtx = ControllerContext.getInstance();
        String activityURL = controllerCtx.getGlobalViewActivityURL(viewId);
        try {
            ectx.redirect(activityURL);
            fctx.responseComplete();
        } catch (IOException e) {
            //Can't redirect
            e.printStackTrace();
            fctx.renderResponse();
        }
    }
}

（5）运行时下拉列表显示的ADF Skins：


Project 下载：ADFSkinSample.7z
